Mars 发布的帖子

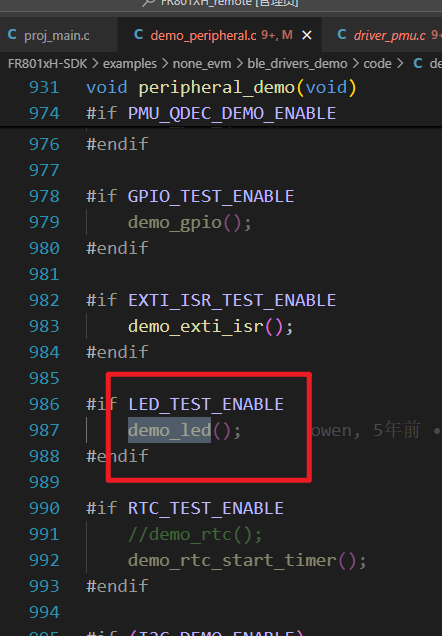

sdk里面有rtc的demo自行烧录验证，rtc功能正常就可以移到你的工程里面进行休眠验证

检查一下固件的大小是否大于flashDB的操作空间
检查flashDB设置flash的大小

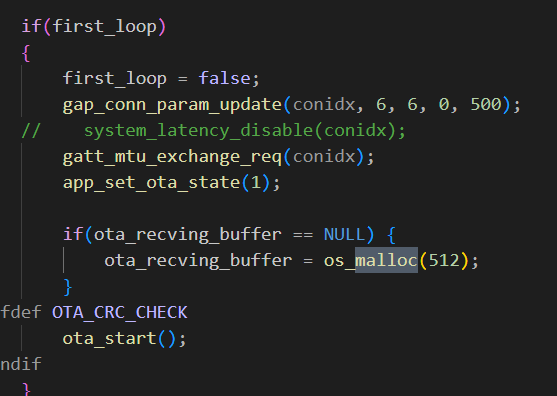

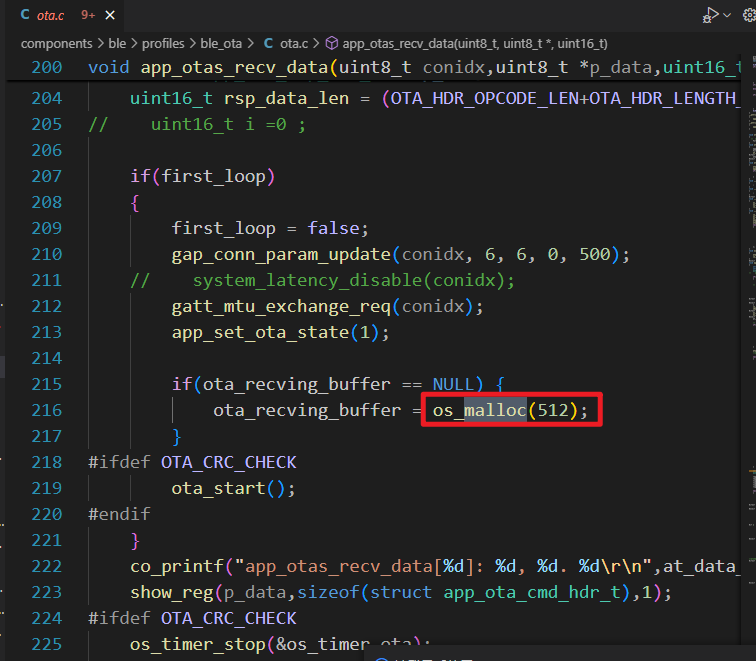

检查OTA设置的B区起始地址

举例假设使用的是FR5098芯片flash为2M，设置ota_get_start_address的start_address为512K+8K是B区OTA的起始地址，那么用户储存区地址就是512k+512k+8k开始到到0x1FD000之前为用户区，然后flashDB的操作地址也应该是512k+512k+8k之后到0x1FD000之前都是可以操作的

FR802x 第一次能开机有日志，复位或者重启之后不能跑起来，115200波特率有freqchi

gpio rtc也可以

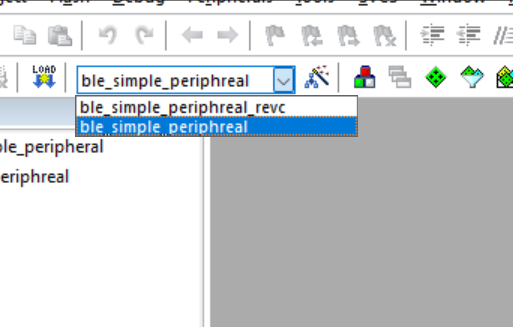

如下

/*
 * INCLUDE FILES
 ****************************************************************************************
 */
#include <stdio.h>
#include <string.h>

#include "gap_api.h"
#include "gatt_api.h"
#include "ble_stack.h"
#include "app_config.h"

#include "jump_table.h"
#include "co_log.h"

#include "plf.h"
#include "driver_system.h"
#include "driver_pmu.h"
#include "driver_uart.h"

#include "ble_simple_peripheral.h"
#include "simple_gatt_service.h"

#undef LOG_LOCAL_LEVEL
#define LOG_LOCAL_LEVEL        (LOG_LEVEL_INFO)
const char *app_tag = "project";

#define SYSTEM_STACK_SIZE           0x800

void patch_init(void);
void disable_ch_sel_2(void);
void conn_req_rssi_filter(int8_t rssi_value);

void systick_init(void);
void systick_delay_ms(uint32_t ms);
void systick_delay_us(uint32_t us);
uint32_t systick_get_ms(void);

/*
 * LOCAL VARIABLES
 */
static volatile uint32_t g_systick_ms = 0;

__attribute__((section("stack_section"))) static uint32_t system_stack[SYSTEM_STACK_SIZE/sizeof(uint32_t)];

const struct jump_table_version_t _jump_table_version __attribute__((section("jump_table_3"))) =
{
    .stack_top_address = &system_stack[SYSTEM_STACK_SIZE/sizeof(uint32_t)],
    .firmware_version = 0x00000000,
};

const struct jump_table_image_t _jump_table_image __attribute__((section("jump_table_1"))) =
{
    .image_type = IMAGE_TYPE_APP,
    .image_size = 0x20000,
};

/*********************************************************************
 * @fn      SysTick_Handler
 *
 * @brief   1ms tick. Overrides the WEAK handler in boot_vectors.
 */
void SysTick_Handler(void)
{
    g_systick_ms++;
}

/*********************************************************************
 * @fn      systick_init
 *
 * @brief   Start SysTick at 1ms. Must be called after system_set_clock().
 */
void systick_init(void)
{
    uint32_t ticks = system_get_clock() / 1000;

    if ((ticks == 0) || ((ticks - 1) > SysTick_LOAD_RELOAD_Msk)) {
        return;
    }

    SysTick_Config(ticks);
}

/*********************************************************************
 * @fn      systick_get_ms
 *
 * @brief   Milliseconds since systick_init. Does not advance in sleep.
 */
uint32_t systick_get_ms(void)
{
    return g_systick_ms;
}

/*********************************************************************
 * @fn      systick_delay_ms
 *
 * @brief   Blocking delay. Do not call with interrupts disabled.
 */
void systick_delay_ms(uint32_t ms)
{
    uint32_t start = g_systick_ms;

    while ((uint32_t)(g_systick_ms - start) < ms) {
    }
}

/*********************************************************************
 * @fn      systick_delay_us
 *
 * @brief   Blocking us delay. Temporarily uses SysTick as a one-shot,
 *          then restores the 1ms tick.
 */
void systick_delay_us(uint32_t us)
{
    uint32_t clk = system_get_clock();
    uint32_t ticks_per_us;
    uint32_t max_us;

    if ((us == 0) || (clk < 1000000)) {
        return;
    }

    ticks_per_us = clk / 1000000;
    max_us = SysTick_LOAD_RELOAD_Msk / ticks_per_us;

    while (us) {
        uint32_t chunk = (us > max_us) ? max_us : us;

        SysTick->CTRL = 0;
        SysTick->LOAD = ticks_per_us * chunk - 1;
        SysTick->VAL  = 0;
        SysTick->CTRL = SysTick_CTRL_CLKSOURCE_Msk | SysTick_CTRL_ENABLE_Msk;

        while ((SysTick->CTRL & SysTick_CTRL_COUNTFLAG_Msk) == 0) {
        }

        us -= chunk;
    }

    systick_init();
}

/*********************************************************************
 * @fn      user_entry_before_sleep_imp
 *
 * @brief   Before system goes to sleep mode, user_entry_before_sleep_imp()
 *          will be called, MCU peripherals can be configured properly before
 *          system goes to sleep, for example, some MCU peripherals need to be
 *          used during the system is in sleep mode.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
__attribute__((section("ram_code"))) void user_entry_before_sleep_imp(void)
{
    /* SysTick uses CPU clock and would wake the core every 1ms */
    SysTick->CTRL = 0;

    pmu_calibration_stop();

    uart_putc_noint_no_wait(UART0, 's');
    co_delay_100us(1);

	pmu_set_pin_to_PMU(GPIO_PORT_A, (1<<GPIO_BIT_1));
	pmu_set_pin_to_PMU(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4));
	pmu_set_pin_dir(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4),GPIO_DIR_IN);
	pmu_set_pin_pull(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4),GPIO_PULL_NONE);
    pmu_oscap_set(0);
}

/*********************************************************************
 * @fn      user_entry_after_sleep_imp
 *
 * @brief   After system wakes up from sleep mode, user_entry_after_sleep_imp()
 *          will be called, MCU peripherals need to be initialized again,
 *          this can be done in user_entry_after_sleep_imp(). MCU peripherals
 *          status will not be kept during the sleep.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
__attribute__((section("ram_code"))) void user_entry_after_sleep_imp(void)
{

    pmu_set_pin_to_CPU(GPIO_PORT_A, (1<<GPIO_BIT_0));

    system_set_port_mux(GPIO_PORT_A, GPIO_BIT_0, PORTA0_FUNC_UART0_RXD);
    system_set_port_mux(GPIO_PORT_A, GPIO_BIT_1, PORTA1_FUNC_UART0_TXD);
    uart_init(UART0, 1152);
    fr_uart_enableIrq(UART0, Uart_irq_erbfi);

    /* RC calibration start. Ensure the accuracy of sleep wake time */
    pmu_calibration_start(PMU_CALI_SEL_RCLFOSC, LP_RC_CALIB_CNT);

    uart_putc_noint_no_wait(UART0, 'w');
    co_delay_100us(1);

    NVIC_EnableIRQ(PMU_IRQn);

    systick_init();
}

__attribute__((section("ram_code"))) void main_loop(void)
{
    while(1)
    {
        if(ble_stack_schedule_allow())
        {
            /*user code should be add here*/

            /* schedule internal stack event */
            ble_stack_schedule();
        }

        GLOBAL_INT_DISABLE();
        switch(ble_stack_sleep_check())
        {
            case 2:
            {
                ble_stack_enter_sleep();
            }
            break;
            default:
                break;
        }
        GLOBAL_INT_RESTORE();

        ble_stack_schedule_backward();
    }
}

/*********************************************************************
 * @fn      proj_init
 *
 * @brief   Main entrancy of user application. This function is called after BLE stack
 *          is initialized, and all the application code will be executed from here.
 *          In that case, application layer initializtion can be startd here.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
void proj_init(void)
{
    LOG_INFO(app_tag, "BLE Peripheral\r\n");
	co_printf("%s\r\n",__func__);
    systick_delay_ms(500);
	co_printf("%s\r\n",__TIME__);

    // Application layer initialization, can included bond manager init,
    // advertising parameters init, scanning parameter init, GATT service adding, etc.
    simple_peripheral_init();
}

io口时钟开了吗

RTC.c驱动部分

/*
  ******************************************************************************
  * @file    driver_rtc.c
  * @author  FreqChip Firmware Team
  * @version V1.0.0
  * @date    2021
  * @brief   rtc module driver.
  *          This file provides firmware functions to manage the
  *          Real Time Clock (RTC) peripheral
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2021 FreqChip.
  * All rights reserved.
  ******************************************************************************
*/
#include "driver_rtc.h"

str_Time_t AlarmTime_A;
str_Time_t AlarmTime_B;

/*********************************************************************
 * @fn      rtc_GetCount
 *
 * @brief   Get rtc current counter value
 *
 * @param   None.
 * @return  None.
 */
void rtc_init(void)
{
    uint8_t lu8_TempValue;

    /* RTC clock enable */
    lu8_TempValue = ool_read(PMU_REG_CLK_EN);

    ool_write(PMU_REG_CLK_EN, lu8_TempValue | PMU_RTC_CLK_EN);

    /* RTC Reset disable */
    lu8_TempValue = ool_read(PMU_REG_RST_CTRL);

    ool_write(PMU_REG_RST_CTRL, lu8_TempValue & ~PMU_RTC_SFT_RST);
}

/*********************************************************************
 * @fn      rtc_AlarmConfig
 *
 * @brief   rtc alarm config
 *
 * @param   fe_Alarm:   alarm select.
            lu8_hour:   hour
            lu8_Minute: minute
            lu8_Second: second
 * @return  None.
 */
void rtc_AlarmConfig(e_alarm_t fe_Alarm, uint32_t fu32_hour, uint32_t fu32_Minute, uint32_t fu32_Second)
{
    uint32_t lu32_Second;

    lu32_Second  = fu32_hour * 3600;
    lu32_Second += fu32_Minute * 60;
    lu32_Second += fu32_Second;

    switch (fe_Alarm)
    {
        case AlARM_A:
        {
            /* Timing backup */
            if (AlarmTime_A.FirstBackup == 0)
                AlarmTime_A.FirstBackup = lu32_Second;

            AlarmTime_A.CycleBackup = lu32_Second;

            /* Convert to count value */
            lu32_Second *= pmu_get_rc_clk(false);
            lu32_Second += rtc_GetCount();

            pmu_enable_isr(PMU_RTC_ALMA_INT_EN);

            ool_pd_write32(PMU_REG_PD_RTC_ALARMA_CNT_0, lu32_Second);

            rtc_AlarmEnable(AlARM_A);
        }break;

        case AlARM_B:
        {
            /* Timing backup */
            if (AlarmTime_B.FirstBackup == 0)
                AlarmTime_B.FirstBackup = lu32_Second;

            AlarmTime_B.CycleBackup = lu32_Second;

            /* Convert to count value */
            lu32_Second *= pmu_get_rc_clk(false);
            lu32_Second += rtc_GetCount();

            pmu_enable_isr(PMU_RTC_ALMB_INT_EN);

            ool_pd_write32(PMU_REG_PD_RTC_ALARMB_CNT_0, lu32_Second);

            rtc_AlarmEnable(AlARM_B);
        }break;

        default: break;
    }
}

/*********************************************************************
 * @fn      rtc_GetCount
 *
 * @brief   Get rtc current counter value
 *
 * @param   None.
 * @return  lu32_CountValue: rtc current counter value.
 */
uint32_t rtc_GetCount(void)
{
    uint32_t lu32_CountValue;

    lu32_CountValue = ool_pd_read32(PMU_REG_PD_RTC_UPD_CNT_0);

    return lu32_CountValue;
}

/*********************************************************************
 * @fn      rtc_CountUpdate
 *
 * @brief   Update RTC counter
 *
 * @param   fu32_Count: update value.
 * @return  None.
 */
void rtc_CountUpdate(uint32_t fu32_Count)
{
    uint8_t lu8_TempValue;

    ool_pd_write32(PMU_REG_PD_RTC_ALARMA_CNT_0, fu32_Count);

    lu8_TempValue = ool_pd_read(PMU_REG_PD_RTC_CTRL);

    ool_pd_write(PMU_REG_PD_RTC_CTRL, lu8_TempValue |  PMU_RTC_UPD_EN);
    ool_pd_write(PMU_REG_PD_RTC_CTRL, lu8_TempValue & ~PMU_RTC_UPD_EN);

    AlarmTime_A.FirstBackup = 0;
    AlarmTime_B.FirstBackup = 0;
}

/*********************************************************************
 * @fn      rtc_AlarmUpdate
 *
 * @brief   rtc alarm Update.
 *          Update according to the periodic period in the rtc_AlarmConfig function.
 *
 * @param   fe_Alarm:   alarm select.
 */
void rtc_AlarmUpdate(e_alarm_t fe_Alarm)
{
    uint32_t lu32_AddValue;
    uint32_t lu32_AlarmValue;

    /* Convert to count value */
    if (fe_Alarm == AlARM_A)
        lu32_AddValue = AlarmTime_A.FirstBackup * pmu_get_rc_clk(false);
    else
        lu32_AddValue = AlarmTime_B.FirstBackup * pmu_get_rc_clk(false);

    lu32_AlarmValue = rtc_AlarmRead(fe_Alarm);

    lu32_AlarmValue += lu32_AddValue;

    rtc_AlarmSet(fe_Alarm, lu32_AlarmValue);
}

/*********************************************************************
 * @fn      rtc_ClockEnable
 *
 * @brief   RTC clock enable
 */
void rtc_ClockEnable(void)
{
    uint8_t lu8_TempValue;

    /* RTC clock enable */
    lu8_TempValue = ool_read(PMU_REG_CLK_EN);
    ool_write(PMU_REG_CLK_EN, lu8_TempValue | PMU_RTC_CLK_EN);
}

/*********************************************************************
 * @fn      rtc_ClockDisable
 *
 * @brief   RTC clock disable
 */
void rtc_ClockDisable(void)
{
    uint8_t lu8_TempValue;

    /* RTC clock enable */
    lu8_TempValue = ool_read(PMU_REG_CLK_EN);
    ool_write(PMU_REG_CLK_EN, lu8_TempValue & ~PMU_RTC_CLK_EN);
}

/*********************************************************************
 * @fn      rtc_ResetEnable
 *
 * @brief   RTC reset enable
 */
void rtc_ResetEnable(void)
{
    uint8_t lu8_TempValue;

    /* RTC Reset disable */
    lu8_TempValue = ool_read(PMU_REG_RST_CTRL);
    ool_write(PMU_REG_RST_CTRL, lu8_TempValue | PMU_RTC_SFT_RST);
}

/*********************************************************************
 * @fn      rtc_ResetDisable
 *
 * @brief   RTC reset disable
 */
void rtc_ResetDisable(void)
{
    uint8_t lu8_TempValue;

    /* RTC Reset disable */
    lu8_TempValue = ool_read(PMU_REG_RST_CTRL);
    ool_write(PMU_REG_RST_CTRL, lu8_TempValue & ~PMU_RTC_SFT_RST);
}

/*********************************************************************
 * @fn      rtc_AlarmEnable
 *
 * @brief   Alarm Enable
 */
void rtc_AlarmEnable(e_alarm_t fe_Alarm)
{
    uint8_t lu8_TempValue;

    /* RTC Alarm Enable */
    lu8_TempValue = ool_pd_read(PMU_REG_PD_RTC_CTRL);
    ool_pd_write(PMU_REG_PD_RTC_CTRL, lu8_TempValue | fe_Alarm);
}

/*********************************************************************
 * @fn      rtc_ALarmDisable
 *
 * @brief   Alarm Disable
 */
void rtc_AlarmDisable(e_alarm_t fe_Alarm)
{
    uint8_t lu8_TempValue;

    /* RTC Alarm Disable */
    lu8_TempValue = ool_pd_read(PMU_REG_PD_RTC_CTRL);
    ool_pd_write(PMU_REG_PD_RTC_CTRL, lu8_TempValue & ~fe_Alarm);
}

/*********************************************************************
 * @fn      rtc_AlarmRead
 *
 * @brief   read rtc alarm config value
 *
 * @param   None.
 * @return  lu32_ConfigValue: alarm config value.
 */
uint32_t rtc_AlarmRead(e_alarm_t fe_Alarm)
{
    uint32_t lu32_ConfigValue;

    switch (fe_Alarm)
    {
        case AlARM_A:
        {
            lu32_ConfigValue  = ool_pd_read32(PMU_REG_PD_RTC_ALARMA_CNT_0);
        }break;

        case AlARM_B:
        {
            lu32_ConfigValue  = ool_pd_read32(PMU_REG_PD_RTC_ALARMB_CNT_0);
        }break;

        default: break;
    }

    return lu32_ConfigValue;
}

/*********************************************************************
 * @fn      rtc_AlarmSet
 *
 * @brief   Set rtc alarm config value
 *
 * @param   None.
 * @return  lu32_ConfigValue: alarm config value.
 */
void rtc_AlarmSet(e_alarm_t fe_Alarm, uint32_t fu32_ConfigValue)
{
    switch (fe_Alarm)
    {
        case AlARM_A:
        {
            ool_pd_write32(PMU_REG_PD_RTC_ALARMA_CNT_0, fu32_ConfigValue);
        }break;

        case AlARM_B:
        {
            ool_pd_write32(PMU_REG_PD_RTC_ALARMB_CNT_0, fu32_ConfigValue);
        }break;
    }
}

/*********************************************************************
 * @fn      rtc_AlarmHandler
 *
 * @brief   Alarm interrupt handler
 */
__attribute__((section("ram_code"))) void rtc_AlarmHandler(void)
{
    if (pmu_get_isr_state() & PMU_RTC_ALMA_INT_STATUS)
    {
        pmu_clear_isr_state(PMU_RTC_ALMA_INT_CLR);

        /* Update according to the periodic period in the rtc_AlarmConfig function. */
        rtc_AlarmUpdate(AlARM_A);
    }
    else if (pmu_get_isr_state() & PMU_RTC_ALMB_INT_STATUS)
    {
        pmu_clear_isr_state(PMU_RTC_ALMB_INT_CLR);

        /* Update according to the periodic period in the rtc_AlarmConfig function. */
        rtc_AlarmUpdate(AlARM_B);
    }
}

使用的是内部1.2V的基准源，外部进行300K+100K分压，io口最高承受3.6V，-u版本的IOLDO参考源末端线性不准所以不建议使用外部3.3V的基准源

/*
  ******************************************************************************
  * @file    saradc_demo.c
  * @author  FreqChip Firmware Team
  * @version V1.0.0
  * @date    2025
  * @brief   SARADC demo based on driver_adc_pro.
  *
  * 与旧 ADC（driver_adc / adc_demo）的区别：
  * 1. 旧 ADC 引脚通道硬件固定，PD1 = AuxADC6 / ADC_CHANNEL_6
  *    （见 driver_gpio.h PortD MUX 的 GPIO_FUNCTION_8）。
  * 2. SARADC 的 SARADC_CHANNEL_0~9 是逻辑通道，不绑死引脚。
  *    采哪根脚由 ch_map_p 决定，PD1 对应 ADC_CH_MAP_PORTD_1。
  * 3. loop_max_channel = N 时，硬件只轮询 CHANNEL_0 ~ CHANNEL_(N-1)。
  *    单通道必须用 SARADC_CHANNEL_0，不能配 CHANNEL_1/6。
  * 4. saradc_get_channel_data() 返回 10bit 原始码 (0~1023)，需自行换算。
  *
  * 电压换算（10bit）：
  *   Vpin(mV) = raw * Vref(mV) / 1024
  *   Vin(mV)  = Vpin * 外部分压比
  * 本板 PD1 有外部 4 分 1 电阻，1.2V 参考：
  *   Vin(mV) = raw * 1200 * 4 / 1024
  * 外部已分压时，内部 ATT 必须 BYPASS，否则会分压两次。
  ******************************************************************************
*/
#include "saradc_demo.h"

#include "driver_gpio.h"
#include "driver_pmu.h"
#include "driver_adc_pro.h"
#include "driver_system.h"

#include "co_printf.h"
#include "co_log.h"

/* 10bit：Vin(mV) = raw * 参考电压(mV) * 分压比 / 1024 */
#define SARADC_RAW_TO_MV(raw, vref_mv, div)    (((uint32_t)(raw) * (vref_mv) * (div)) / 1024)

/**
 * @brief  把 GPIO 配成模拟输入：输入、无上下拉。
 *         SARADC 通过 ch_map_p 选脚，不再需要旧 ADC 的 GPIO_FUNCTION_8。
 */
static void saradc_gpio_analog_init(enum_GPIOx_t port, uint32_t pin)
{
    GPIO_InitTypeDef GPIO_Handle;

    GPIO_Handle.Pin  = pin;
    GPIO_Handle.Mode = GPIO_MODE_INPUT;     /* 模拟输入 */
    GPIO_Handle.Pull = GPIO_NOPULL;         /* 禁止上下拉，避免拉偏采样 */
    gpio_init(port, &GPIO_Handle);
}

/**
 * @brief  SARADC 公共初始化。
 *         内部 1.2V 参考；clock_div 必须为偶数；sampling_cycle 建议 15。
 */
static void saradc_common_init(saradc_InitConfig_t *Init)
{
    Init->saradc_reference      = SARADC_REF_INTERNAL_1P2V; /* 内部 1.2V 基准 */
    Init->saradc_clock_div      = 2;                        /* 采样时钟分频，最小 2 */
    Init->saradc_sampling_cycle = 15;                       /* 采样周期，1~16 */
    saradc_init(Init);
}

/************************************************************************************
 * @fn      saradc_demo
 *
 * @brief   SARADC demo based on driver_adc_pro.
 *
 * @param   fe_Demo: demo select.
 */
void saradc_demo(enum_SARADC_Demo_t fe_Demo)
{
    saradc_InitConfig_t    saradc_InitConfig;
    saradc_LoopConfig_t    LoopConfig;
    saradc_ChannelConfig_t ChannelConfig;
    uint16_t raw;

    __SYSTEM_ADC_CLK_ENABLE();      /* 打开 ADC/SARADC 时钟 */
    __SYSTEM_GPIO_CLK_ENABLE();     /* 打开 GPIO 时钟，才能配引脚 */

    switch (fe_Demo)
    {
        /*
         * 单通道：采 PD1。
         * 逻辑通道用 CHANNEL_0（loop_max=1 只转 CH0）。
         * 引脚用 ADC_CH_MAP_PORTD_1，不是旧的 ADC_CHANNEL_6。
         * 外部已有 4 分 1，内部 ATT 旁路。
         */
        case SARADC_DEMO_SINGLE_CHANNEL:
        {
            saradc_gpio_analog_init(GPIO_D, GPIO_PIN_1);

            saradc_common_init(&saradc_InitConfig);

            LoopConfig.loop_max_channel           = 1;                      /* 只转 CH0 */
            LoopConfig.loop_interval_mode         = SARADC_INTVL_DISABLE;   /* 通道间不插间隔 */
            LoopConfig.loop_interval_len          = 0;
            LoopConfig.loop_FIFO_enable           = SARADC_FUNC_DISABLE;    /* 不用 FIFO，读通道寄存器 */
            LoopConfig.loop_FIFO_channel_sel      = 0;
            LoopConfig.loop_FIFO_almost_threshold = 0;
            saradc_loop_config(&LoopConfig);

            ChannelConfig.ch_mode               = SARADC_CH_MODE_SINGLE;        /* 单端 */
            ChannelConfig.ch_map_p              = ADC_CH_MAP_PORTD_1;           /* 正极接到 PD1 */
            ChannelConfig.ch_map_n              = ADC_CH_MAP_VSSA;              /* 负极接模拟地 */
            ChannelConfig.ch_voltage_divider    = SARADC_VOLTAGE_DIVIDER_BYPASS;/* 内部不再分压 */
            ChannelConfig.ch_source_follower_en = SARADC_FUNC_DISABLE;
            saradc_channel_config(SARADC_CHANNEL_0, &ChannelConfig);

            saradc_loop_convert_start();    /* 启动循环转换 */
            co_delay_100us(1500);           /* 等待模拟建立 */

            co_printf("SDK V1.5 SARADC start\r\n");
            while (1)
            {
                /* 该逻辑通道转换完成才会置位 */
                if (saradc_get_channel_valid_status(SARADC_CHANNEL_0))
                {
                    raw = saradc_get_channel_data(SARADC_CHANNEL_0);    /* 10bit raw */
                    /* 1.2V 参考 + 外部 4 分 1：Vin = raw * 1200 * 4 / 1024 */
                    co_printf("SDK V1.5 SARADC raw=%d, mv=%d\r\n",
                              raw, SARADC_RAW_TO_MV(raw, 1200, 4));
                }
                co_delay_100us(2000);
            }
        }

        /*
         * 多通道：PD0~PD3 映射到逻辑 CH0~CH3。
         * loop_max_channel 必须等于实际通道数 4，否则后面的通道不会转换。
         */
        case SARADC_DEMO_MULTI_CHANNEL:
        {
            saradc_gpio_analog_init(GPIO_D, GPIO_PIN_0 | GPIO_PIN_1 | GPIO_PIN_2 | GPIO_PIN_3);

            saradc_common_init(&saradc_InitConfig);

            LoopConfig.loop_max_channel           = 4;                      /* 转 CH0~CH3 */
            LoopConfig.loop_interval_mode         = SARADC_INTVL_DISABLE;
            LoopConfig.loop_interval_len          = 0;
            LoopConfig.loop_FIFO_enable           = SARADC_FUNC_DISABLE;
            LoopConfig.loop_FIFO_channel_sel      = 0;
            LoopConfig.loop_FIFO_almost_threshold = 0;
            saradc_loop_config(&LoopConfig);

            ChannelConfig.ch_mode               = SARADC_CH_MODE_SINGLE;
            ChannelConfig.ch_map_n              = ADC_CH_MAP_VSSA;
            ChannelConfig.ch_voltage_divider    = SARADC_VOLTAGE_DIVIDER_0P25;  /* 内部 1/4，无外部分压时可用 */
            ChannelConfig.ch_source_follower_en = SARADC_FUNC_DISABLE;

            ChannelConfig.ch_map_p = ADC_CH_MAP_PORTD_0;
            saradc_channel_config(SARADC_CHANNEL_0, &ChannelConfig);
            ChannelConfig.ch_map_p = ADC_CH_MAP_PORTD_1;
            saradc_channel_config(SARADC_CHANNEL_1, &ChannelConfig);
            ChannelConfig.ch_map_p = ADC_CH_MAP_PORTD_2;
            saradc_channel_config(SARADC_CHANNEL_2, &ChannelConfig);
            ChannelConfig.ch_map_p = ADC_CH_MAP_PORTD_3;
            saradc_channel_config(SARADC_CHANNEL_3, &ChannelConfig);

            saradc_loop_convert_start();

            while (1)
            {
                for (int i = 0; i < 4; i++)
                {
                    if (saradc_get_channel_valid_status((enum_saradc_channel_t)i))
                    {
                        raw = saradc_get_channel_data((enum_saradc_channel_t)i);
                        co_printf("CH[%d] raw=%d, mv=%d\r\n",
                                  i, raw, SARADC_RAW_TO_MV(raw, 1200, 4));
                    }
                }
                co_delay_100us(2000);
            }
        }

        /*
         * 内部 1/4 VBAT。
         * 模拟前端已做电池分压，通道 ATT 旁路；换算时再 *4 得到 VBAT。
         */
        case SARADC_DEMO_VBAT:
        {
            saradc_common_init(&saradc_InitConfig);
            saradc_vbat_measure_enable();   /* 打开内部 VBAT 分压电路 */

            LoopConfig.loop_max_channel           = 1;
            LoopConfig.loop_interval_mode         = SARADC_INTVL_DISABLE;
            LoopConfig.loop_interval_len          = 0;
            LoopConfig.loop_FIFO_enable           = SARADC_FUNC_DISABLE;
            LoopConfig.loop_FIFO_channel_sel      = 0;
            LoopConfig.loop_FIFO_almost_threshold = 0;
            saradc_loop_config(&LoopConfig);

            ChannelConfig.ch_mode               = SARADC_CH_MODE_SINGLE;
            ChannelConfig.ch_map_p              = ADC_CH_MAP_VBAT;              /* 内部 VBAT */
            ChannelConfig.ch_map_n              = ADC_CH_MAP_VSSA;
            ChannelConfig.ch_voltage_divider    = SARADC_VOLTAGE_DIVIDER_BYPASS;
            ChannelConfig.ch_source_follower_en = SARADC_FUNC_DISABLE;
            saradc_channel_config(SARADC_CHANNEL_0, &ChannelConfig);

            saradc_loop_convert_start();

            while (1)
            {
                if (saradc_get_channel_valid_status(SARADC_CHANNEL_0))
                {
                    raw = saradc_get_channel_data(SARADC_CHANNEL_0);
                    co_printf("1/4 VBAT raw=%d, vbat=%d mV\r\n",
                              raw, SARADC_RAW_TO_MV(raw, 1200, 4));
                }
                co_delay_100us(2000);
            }
        }

        /*
         * 核温 VBE，无外部分压，换算比取 1。
         */
        case SARADC_DEMO_VBE:
        {
            saradc_common_init(&saradc_InitConfig);
            saradc_vbe_measure_enable();    /* 打开内部温度传感 */

            LoopConfig.loop_max_channel           = 1;
            LoopConfig.loop_interval_mode         = SARADC_INTVL_DISABLE;
            LoopConfig.loop_interval_len          = 0;
            LoopConfig.loop_FIFO_enable           = SARADC_FUNC_DISABLE;
            LoopConfig.loop_FIFO_channel_sel      = 0;
            LoopConfig.loop_FIFO_almost_threshold = 0;
            saradc_loop_config(&LoopConfig);

            ChannelConfig.ch_mode               = SARADC_CH_MODE_SINGLE;
            ChannelConfig.ch_map_p              = ADC_CH_MAP_VBEP;              /* VBE 正极 */
            ChannelConfig.ch_map_n              = ADC_CH_MAP_VSSA;
            ChannelConfig.ch_voltage_divider    = SARADC_VOLTAGE_DIVIDER_BYPASS;
            ChannelConfig.ch_source_follower_en = SARADC_FUNC_DISABLE;
            saradc_channel_config(SARADC_CHANNEL_0, &ChannelConfig);

            saradc_loop_convert_start();

            while (1)
            {
                if (saradc_get_channel_valid_status(SARADC_CHANNEL_0))
                {
                    raw = saradc_get_channel_data(SARADC_CHANNEL_0);
                    co_printf("VBE raw=%d, mv=%d\r\n",
                              raw, SARADC_RAW_TO_MV(raw, 1200, 1));
                }
                co_delay_100us(2000);
            }
        }

        default:
            break;
    }
}

FR800x-U加强版的的 SARADC怎么使用

@ding56239
// <h> FLASH Configuration
// <o> FLASH_CAPACITY
// <i> Internal Flash capacity selection, Default: 4Mb
// <0x02000000=> 128Mb
// <0x01000000=> 64Mb
// <0x00800000=> 32Mb
// <0x00100000=> 8Mb
// <0x00080000=> 4Mb
// <0x00040000=> 2Mb
#define FLASH_CAPACITY 0x02000000

#define BLE_STACK_KEY_STORAGE_OFFSET (FLASH_CAPACITY-0x1000)
#define BLE_REMOTE_SERVICE_SAVE_ADDR (FLASH_CAPACITY-0x2000)
#define BLE_BONDING_INFO_SAVE_ADDR (FLASH_CAPACITY-0x3000)

你app_config.h的最大连接数改了吗

没有单独的mcu库哦

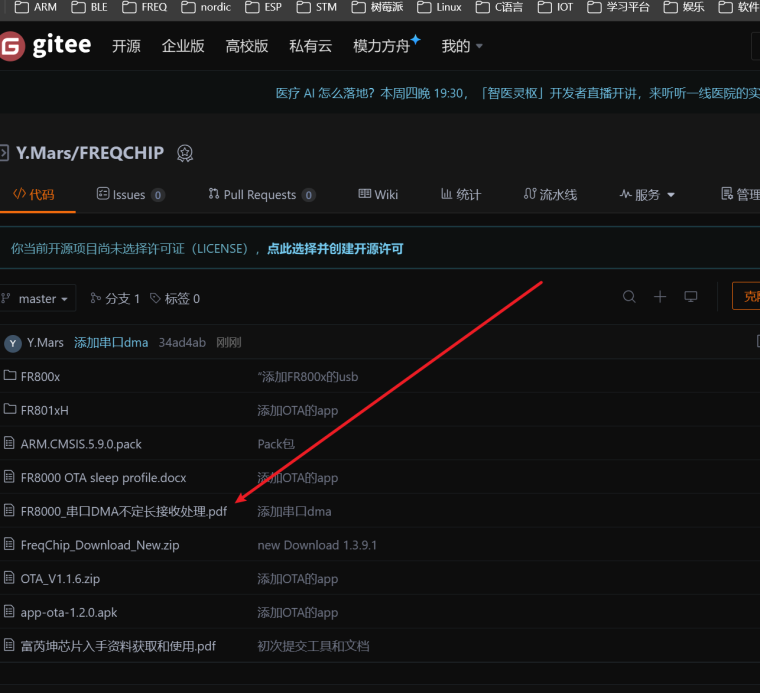

# define AT_RECV_MAX_LEN             513
static void app_at_recv_c(uint8_t *rx_buff,uint16_t rx_length)
{
   if((memcmp(at_recv_buffer,"AT#",3)==0)||(memcmp(at_recv_buffer,"AT+",3)==0))
   {
    uint16_t cmd_len=rx_length-3;

  struct app_task_event *event;
  event = app_task_event_alloc(APP_TASK_EVENT_AT_CMD, cmd_len, false);
  if(event) {
   memcpy(event->param, &at_recv_buffer[3], cmd_len);
   app_task_event_post(event, false);
  }
    }
   else
   {
  struct app_task_event *event;
  event = app_task_event_alloc(APP_TASK_EVENT_SPEED, at_recv_index, false);
  if(event) {
   memcpy(event->param, at_recv_buffer, at_recv_index);
   app_task_event_post(event, false);
  }

   }
   memset(at_recv_buffer,0,AT_RECV_MAX_LEN);
 at_recv_index = 0;
}

extern USART_HandleTypeDef log_usart;
__RAM_CODE void USART2_IRQHandler(void)
{
  if((__USART_GET_INT_STATUS(USART2, USART_INT_RX)) || (__USART_GET_INT_STATUS(USART2, USART_INT_RFTO)))
    {
        if(log_usart.Init.DataLength == USART_DATA_LENGTH_9BIT)
        {
            /*Rx ready */
            while(__USART_GET_SR_STATUS(USART2, USART_STATUS_DR))
            {
                (*(uint16_t*)log_usart.p_RxData) = USART2->DR;

                log_usart.p_RxData += sizeof(uint16_t);
                log_usart.u32_RxCount++;
            }
        }
        else
        {
            /* Rx ready */
            while(__USART_GET_SR_STATUS(USART2, USART_STATUS_DR))
            {
                at_recv_buffer[at_recv_index++] = USART2->DR;
                if(at_recv_index>=AT_RECV_MAX_LEN)
    {
     app_at_recv_c(&at_recv_buffer[0],at_recv_index);
    }

            }
        }

    }/* Receiver Timeout */
    if(__USART_GET_INT_STATUS(USART2, USART_INT_RTO))
    {
        __USART_CLEAN_INT_STATUS(USART2, USART_INT_RTO);
  at_recv_buffer[at_recv_index++] = USART2->DR;
//  for(uint8_t i=0;i<at_recv_index;i++)
//  {
//   printf("%c ",at_recv_buffer[i]);
//  }
//        printf("Packet Len = %d\r\n", at_recv_index);
        /*这里处理完整的数据包*/
  app_at_recv_c(&at_recv_buffer[0],at_recv_index);
    }
}

什么都没有改使用原始sdk会出现吗

FR802x支持串口超时判断，使用方法是怎么样的？

修改办法参考上面

FR802x原始SDK的USB无法识别的问题

// <h> FLASH Configuration
// <o> FLASH_CAPACITY
// <i> Internal Flash capacity selection, Default: 4Mb
// <0x02000000=> 128Mb
// <0x01000000=> 64Mb
// <0x00800000=> 32Mb
// <0x00100000=> 8Mb
// <0x00080000=> 4Mb
// <0x00040000=> 2Mb
#define FLASH_CAPACITY 0x02000000

#define BLE_STACK_KEY_STORAGE_OFFSET (FLASH_CAPACITY-0x1000)
#define BLE_REMOTE_SERVICE_SAVE_ADDR (FLASH_CAPACITY-0x2000)
#define BLE_BONDING_INFO_SAVE_ADDR (FLASH_CAPACITY-0x3000)
原始sdk你直接替换成这样就可以的
然后选择你对应的flash大小、
